Did some scratchbuilding this weekend. I wanted a 1/700th scale Royal Navy "M" Class destroyer. There are resin kits of them, but why bother spending $80 when one could probably be scratchbuilt? How tough can it be? First, I use one inch thick balsa planks. They are easy to cut to shape and if you screw up you're only out a dollar seventy five. I spend more than that on beer.
The "trueing" of the hull is pretty simply accomplishd using "feel" and some good plans. It helps to have a basic idea of what the finished shape should be and also some references. The class are pretty simple as most ships born before the war are, so getting that exact shape is pretty easy.
The American Fletcher Class destroyers were close in length, beam and draught to the British M Class, so using one of the Fletchers is a good common sense guide. Once you're happy with the overall shape of the hull, liberal coating with sanding sealer is mandatory. The sanding sealer gives the balsa wood strength and makes the wood smooth and glass-like for painting. Notice the dollar bill to give an overall size reference. 1/700th scale ships can be pretty small...
The mixed grey colors are combinations of primer, gap filling primer and other test sprays to guage both the smoothness of my hull and the watertightness of the wood. Ideally the wood should not pit or display a rough texture. Once that works, the scratchbuilding begins. For my ship, I've chosen to do a post-war "M" class. This involves removing the two forward 5.5" turrets and replaceing them with the newer 4.5" turret and a Hedgehog projector. The two tall boxes behind the Hedgehog are the ready use magazines.
To continue our journey from 1945 to 1948, the single 20mm guns on either side of the bridge have been replaced with twin 20's. Also, the pole mast is now a lattice mast. The original fire control director has been replaced as well. Aft of the smoke stack was a bandstand which had a quadruple pom-pom mount. Late war saw this replaced by two twin 20mm guns and a fire control director. This installation remains in 1948. Also unchanged is the quadruple torpedo tube unit.
The biggest change will be the removal of the midships searchlight platform and open mount 4" AA gun. In their place we have a tower that mounts two quadruple Tigercat SAM launchers and their dedicated fire control system. Aft of the Cats is an armored magazine providing sixteen more rounds. This AAW capability was pretty freakin' impressive for it's day. The aft twin turret was removed early 1945 and replaced with a twin 40mm "Hazemeyer" mount and another fire control director.
The last change would be the removal of the single 20mm gun and depth charges aft. In their place would be a crude central air conditioning unit and an early prototype towed array system. All parts have pretty much come from the parts bucket. The mast still needs some antenna spreaders and some radar on it.

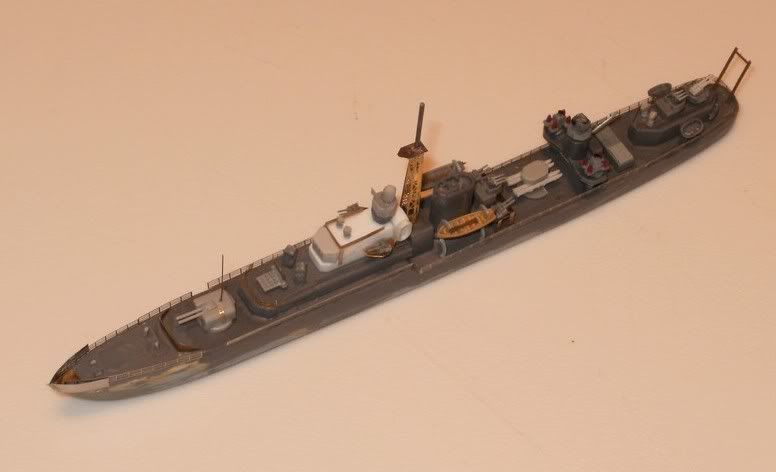

The M Class would hold the line for the Royal Navy prior to the launch of the Leander Class Frigates and Town Class Destroyers. Once the new ships came online, the M's would be sold to Turkey. Value for money, the M's would last until 1971. At this point, the ship is built and all PE added except for the main mast. I am still searching for a photo that shows late 1940's Royal Navy radar fit. Also, she'll need to be rigged and painted. The color will be a white-ish grey that the Royal Navy adopted for Pacific use.
What a great idea! Wish I'd have thought about it earlier (thanks Matty). So with that in mind, here's where all the parts came from:
* all four twin 20mm's are from the Skywave Rudderow kit. * twin 4.5 turret is from the Skywave HMS Exeter kit. * davits are from the Skywave Adams Class DDG kit. * launches are from Skywave Weapon Set E * Tiger Cat SAM launchers are from Skywave Weapon Set E * Main mast is from WEM HMS Kelly fret * FC directors are from Tamiya HMS KGV kit * Life rafts are from Dragon USS Atlanta kit * Twin 40mm is from Skywave USS Miami kit * Quad TT mount is from Skywave Weapon Set E * Searchlights are from Skywave Callaghan kit * ladder stock is from various Toms Modelworks frets * Hedgehog launcher is from Skywave Gearing kit * antenna is a guitar "E" string * railings are GMM scraps * aft and forward superstructure are Evergreen block stock * smoke stack is Evergreen rod stock
I can edit your original post to include all those descriptions (in parentheses).
Where did the bridge/conn face come from? Looks like a DD, or maybe AA cruiser kit, complete with windows...
You know Donny, most of your build posts are full-fledged build articles - and should be archived in the "Articles" thread, on top. I have all your old ones (that have dropped off the board), and am going to do something about that, you bet!
Cheers,
-Matty
Re: Outstanting, Chief!
Posted by Don Murphy on April 27, 2010, 10:57:08, in reply to "Outstanting, Chief!"
Oh yeah! Forgot that one: Also, some more I forgot...
* bridge face is from Skywave Callaghan kit * Main bridge FC radar is scrap sprue * Tiger Cat magazine is Evergreen block stock * Tiger Cat magazine blast door is from Skywave Set E * paravanes on aft superstructure are from Skywave Set E * blockhouse that the mast sits on is from a Tamiya M-113 APC
Looks like your 700-scale parts box has (perhaps long ago) reached a "critical mass" - where all you need, for about any ship, is just to come up with the hull and main deck! My 500-scale parts box is exactly like that - except almost all the detail parts from those '60s-era kits aren't good enough to suit me, anymore! (And anyway, I would want to show off Matty's Models' upgrades, in any current build(s).)
Don, it would be very interesting to see you list off (if you can possibly remember) each kit that each part came from. I could pretty much do that for most of my earlier builds - and I will do it, when I can get around to giving each a refit, with (greatly) upgraded parts.
Meantime, your creativity is, as always, great to see, buddy! What ever posessed you to build an "M"-class DD - and Early Cold War fit, at that?
Hi don I enjoyed your post. Do you try to add the hard chine aft of the bow on the RN destroyer? I could never get it right. How do you do the sheer line? Both of these things gave me fits. I always used basswood rather then balsa...made too many mistakes with the softer wood. The ship looks great.john
I just use real patient sanding. I will also strengthen the bow with sanding sealer so that way I'm not too destructive when the "point" starts to form.
I'm starting to gravitate towards bass wood. It's getting cheap enough to warrant it. The balsa is pretty cheap which is why I use it.
