.860 Endbells on the PS-747-B Can

Posted by Dave D on February 21, 2015, 11:32 am

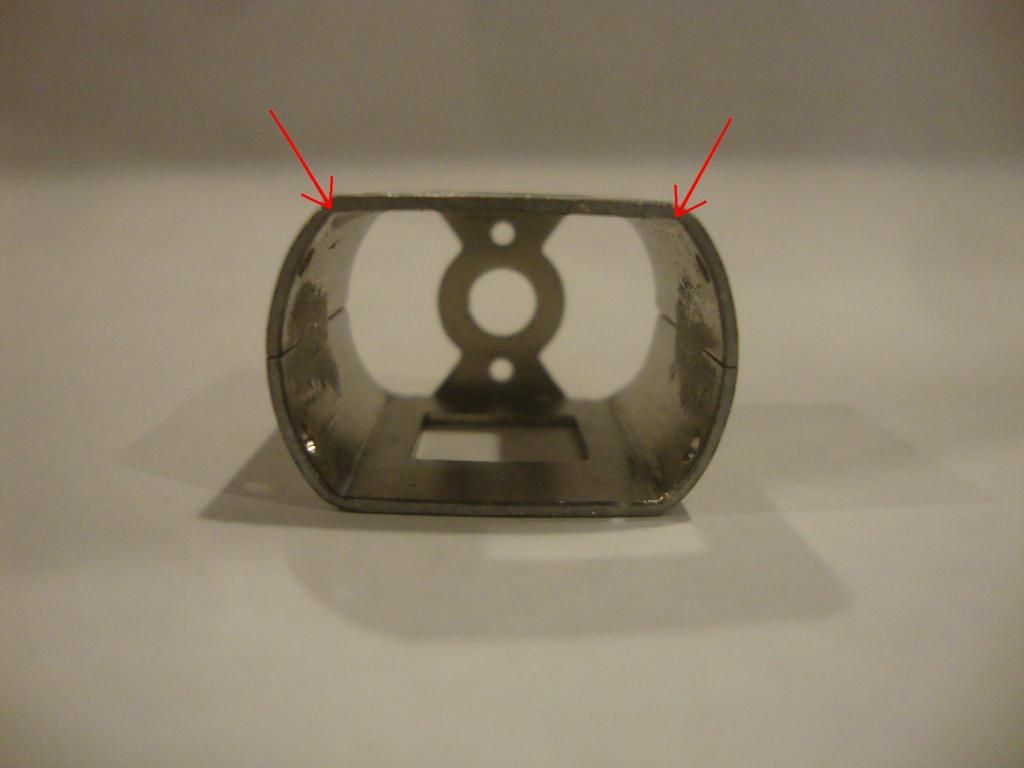

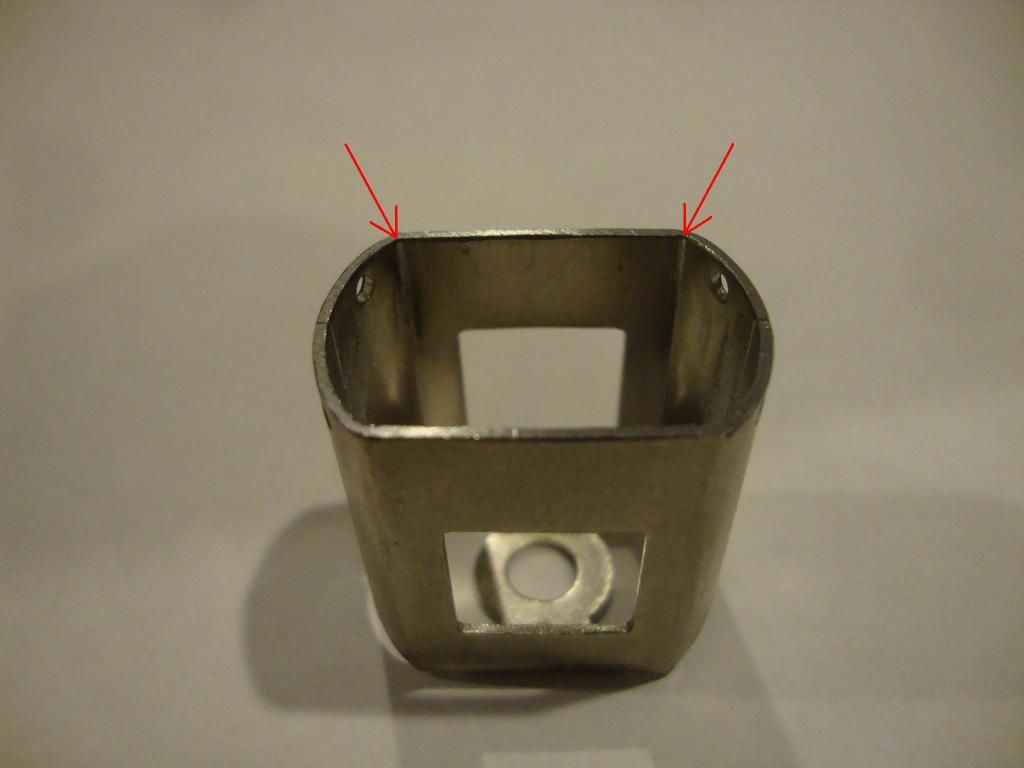

I just wanted to post these pictures to show what it takes to build a "SOLID" .860 "STRETCHED CAN" set-up using my .860 endbell. The can is not shaped that well to begin with. It is made with thicker material than the older style cans, and the corners are rounded rather than sharp. There is "NO NEED" to do anything to the endbell, but rather "SHAPE" the "TOP 2" corners highlighted in the pictures. Pro Slot endbells do not locate that well in their can due to poor "QC", and there not being a bottom side to the endbell. If you size the 2 corners highlighted in these pictures you will "NEVER" have to worry about bearing alignment in the set-up again, and you will have the best fitting dragmaster can/srp endbell assembly ever.

Message Thread

.860 Endbells on the PS-747-B Can - Dave D February 21, 2015, 11:32 am

Re: .860 Endbells on the PS-747-B Can - Brandon February 21, 2015, 1:03 pm
Re: .860 Endbells on the PS-747-B Can - Dirk Antoine February 24, 2015, 11:49 am
- Re: .860 Endbells on the PS-747-B Can - Dave D February 24, 2015, 10:24 pm
